Crematory Thermocouples Replacements

Reliable, American-Made Assemblies to Keep Your Retort Running.
Backed by a century of manufacturing excellence.
Orders before 2pm EST processed same day.

Request a Quote
ISO 9001:2015 Certified Same-Day Processing Made in USA

Complete Thermocouple Assemblies

Type K ceramic crematory thermocouple assemblies with 3/4" NPT fittings, manufactured in the USA and built to handle the extreme heat of crematory retort operations.

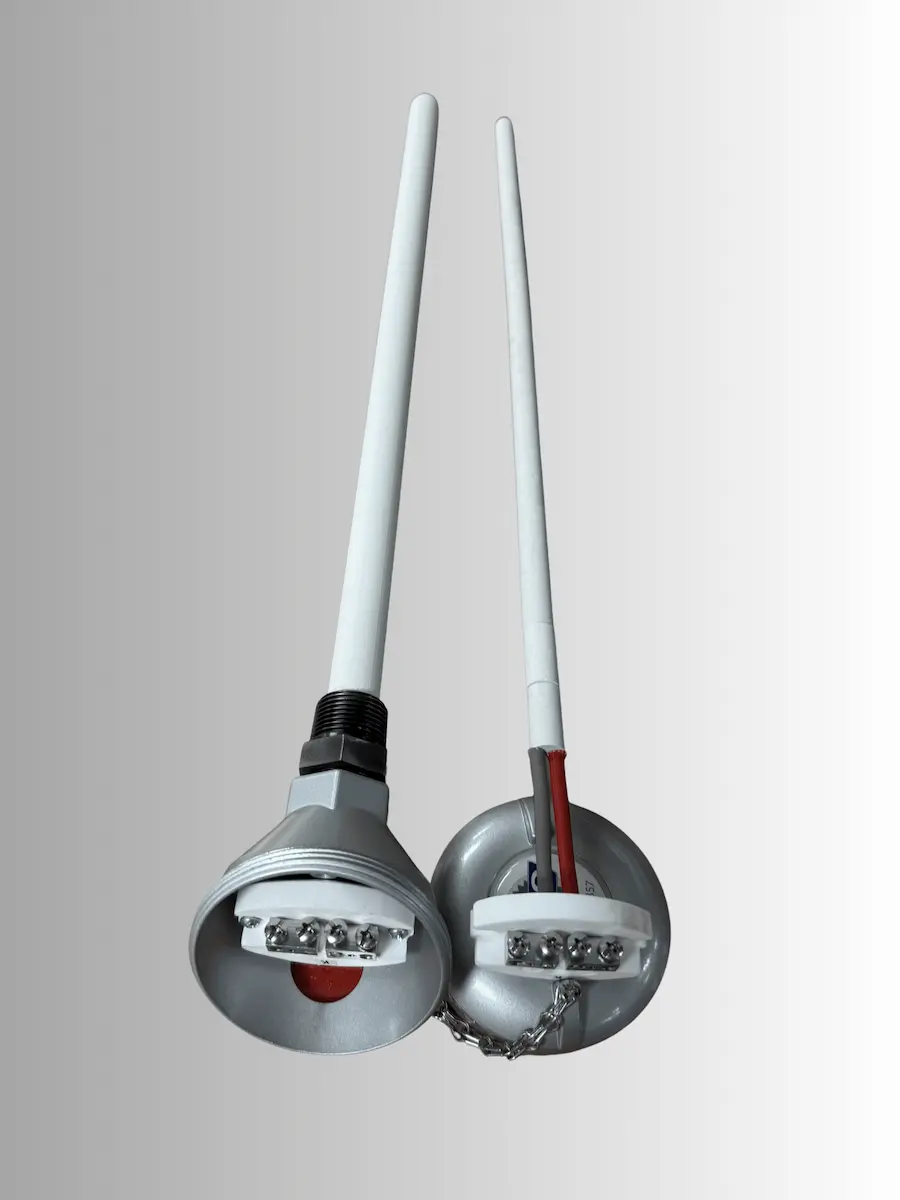

Type K ceramic crematory thermocouple assembly with 3/4 inch NPT fitting, mullite protection tube, and aluminum connection head

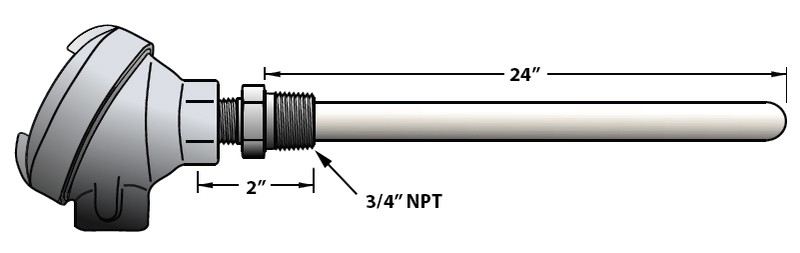

Type K Ceramic Assembly with 3/4" NPT Fitting

Available in 12", 18", and 24" lengths — in stock and ready for same-day processing on orders received before 2 pm EST.

A Full Assembly Includes:

  • Type K 8-gauge element
  • Ceramic mullite protection tube (3/4" OD)
  • Terminal block
  • Aluminum connection head

Select Length:

Bulk pricing available for orders of 5 or more

Replacement Element & Block

A cost-effective alternative to a full assembly replacement. Keep your retort running with a Type K element and terminal block sized for your existing thermocouple.

Type K replacement thermocouple element and terminal block for crematory retort maintenance

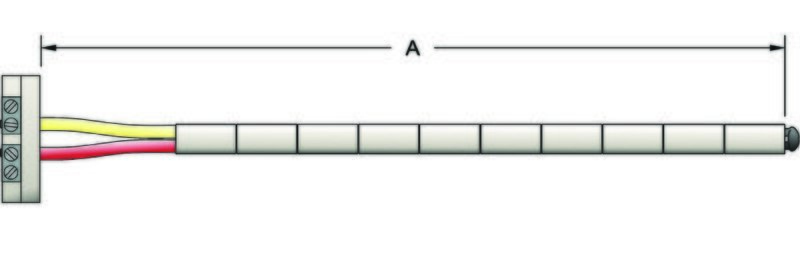

Type K Replacement Element & Block

Designed to replace the internal element and block of your existing crematory thermocouple assembly. Available in lengths to match our 12", 18", and 24" complete assemblies.

Each Kit Includes:

  • Type K 8-gauge element
  • Terminal block
  • Made in USA

Select Length:

Not sure which size? Contact us with your retort make & model.

Why Choose Us

Built to Last

An unreliable probe can cost you downtime and repeated replacements. Our assemblies are manufactured on-site in Pennsylvania using ASME-certified welding and robust 8-gauge elements, ensuring they withstand the extreme conditions of your retort.

Accuracy You Can Document.

NIST traceable calibration (32°F to 2300°F). ISO 9001:2015 certified for guaranteed accuracy.

Access to Application Expertise

Our in-house specialists are trained in thermodynamics and material science. We don't just sell parts—we provide engineering-level support to ensure you have the optimal sensor for your specific retort model and operational conditions.

Frequently Asked Questions

Will these thermocouples fit crematory retorts?

Yes. We offer standard 12″, 18″, and 24″ Type K assemblies with 3/4″ NPT fittings, and can match other specs on request.

  • Replacement elements available separately.
  • For other sizes or fittings, call 800-642-1357.

What's included in a complete assembly?

An 8-gauge Type K element, a mullite protection tube, a terminal block, and an aluminum connection head.

What information helps you quote the right replacement?

Cremator make/model, probe location (primary or afterburner), OD and immersion length, and any markings/photos.

When will my order be processed?

  • Orders received after 2 pm EST are processed the following business day.
  • Orders received before 2 pm EST are processed the same business day (processing ≠ shipping).

Do you offer custom lengths or materials?

Yes. NBS custom manufactures thermocouples/RTDs (lengths, diameters, fittings, and materials including Inconel, Stainless, and ceramic options).

Can you match my existing OEM thermocouple?

Yes. NBS provides identification and evaluation and can match OEM specifications; documentation is kept for easy reorders.

Do you support other thermocouple types?

Type K is standard for the listed assemblies; other types (e.g., N, R, S) are available through NBS on request.
